Input / Output
Noetic Sea has several variations for connecting to Live Sound Systems. We do our own IEM Mix. We also provide a Stage Wedge submix. Vocals and Keyboards come as Line Level submixes from our Gear. Bass and Guitars come as Line Level DIs. Drums will come as individual mic or line inputs (see below)
Stage Plot Summary
- Drum Kit (Acoustic or Electric)
- Bass DI
- Acoustic Guitar DI
- Electric Guitar DI
- Ableton Playback (Stereo)
- Vocal Mix (Stereo with FX
| # | Source | Type | Connector | Notes |
| 1 | Kick | Mic | XLR | Beta 52 / AKG D112 or similar |
| 2 | SN Top | Mic | XLR | SM57 or similar |
| 3… | OH/Toms/Etc | Mic | XLR | As Needed |
| 4 | Bass | DI | XLR | Line Level with comp/eq |
| 5 | Electric Guitar | DI | XLR | Line Level with FX |
| 6 | Acoustic Guitar | DI | XLR | Line Level with FX |
| 7 | Vocal Mix L | Line (stereo pair) | XLR | Stereo Pair. Premixed with FX |
| 8 | Vocal Mix R | Line (stereo pair) | XLR | Stereo Pair. Premixed with FX |
| 9 | DAW Playback L | Line (stereo pair) | XLR | Stereo Pair premixed |
| 10 | DAW Playback R | Line (stereo pair) | XLR | Stereo Pair premixed |
| 11 | Stage Wedge Mix | Line Mono | XLR | Wedge Premix to be fed to Stage Wedges |
| # | Source | Type | Connector | Notes |
| 1 | Kick | Line | TRS | From Module |
| 2 | SN | Line | TRS | From Module |
| 3 | Cymb/Tom L | Line | TRS | From Module premixed |
| 4 | Cymb/Tom R | Line | TRS | From Module premixed |
| 5 | Bass | DI | XLR | Line Level with comp/eq |
| 6 | Electric Guitar | DI | XLR | Line Level with FX |
| 7 | Acoustic Guitar | DI | XLR | Line Level with FX |
| 8 | Vocal Mix L | Line (stereo pair) | XLR | Stereo Pair. Premixed with FX |
| 9 | Vocal Mix R | Line (stereo pair) | XLR | Stereo Pair. Premixed with FX |
| 10 | DAW Playback L | Line (stereo pair) | XLR | Stereo Pair premixed |
| 11 | DAW Playback R | Line (stereo pair) | XLR | Stereo Pair premixed |
| 12 | Stage Wedge Mix | Line Mono | XLR | Wedge Premix to be fed to Stage Wedges |
| # | Source | Type | Connector | Notes |
| 1 | Full Mix L | Line (stereo pair) | XLR | Stereo Pair premixed |
| 2 | Full Mix R | Line (stereo pair) | XLR | Stereo Pair premixed |
| 3 | Stage Wedge Mix | Line Mono | XLR | Wedge Premix to be fed to Stage Wedges |
Vocal Mics: Ours or Yours. SM58 or similar wired to our rack.

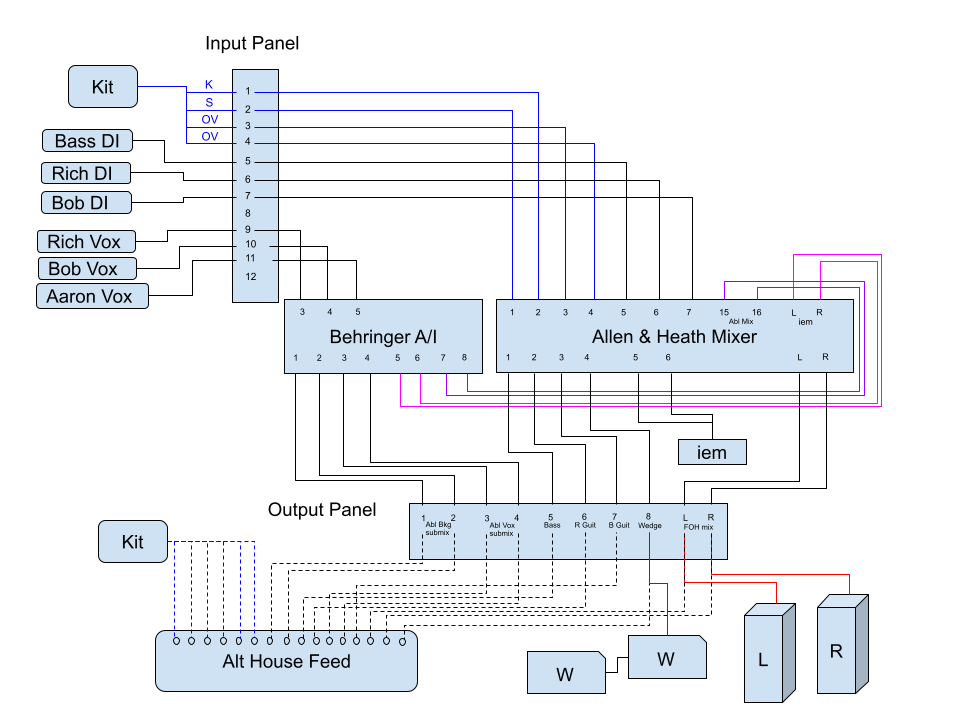

Stage Rack Connection Diagram
